What is a Common Data Environment and Why Does It Matter?

We are pleased to share this blog post from our Partner Autodesk.

Throughout the course of any project requires the creation and sharing of untold data during the lifecycle of the project. Unfortunately, a lot of teams have trouble successfully managing and distributing this knowledge. Companies without a framework will unfortunately suffer from bad management, resulting to errors, rework, missed deadlines, cost overruns, bruised feelings and even litigation. Alternatively, there are ways to resolve construction’s data overload, including creating a standardised way of structuring data and collaboration, or more specifically, by adopting a common data environment (CDE) with Autodesk Construction Cloud.

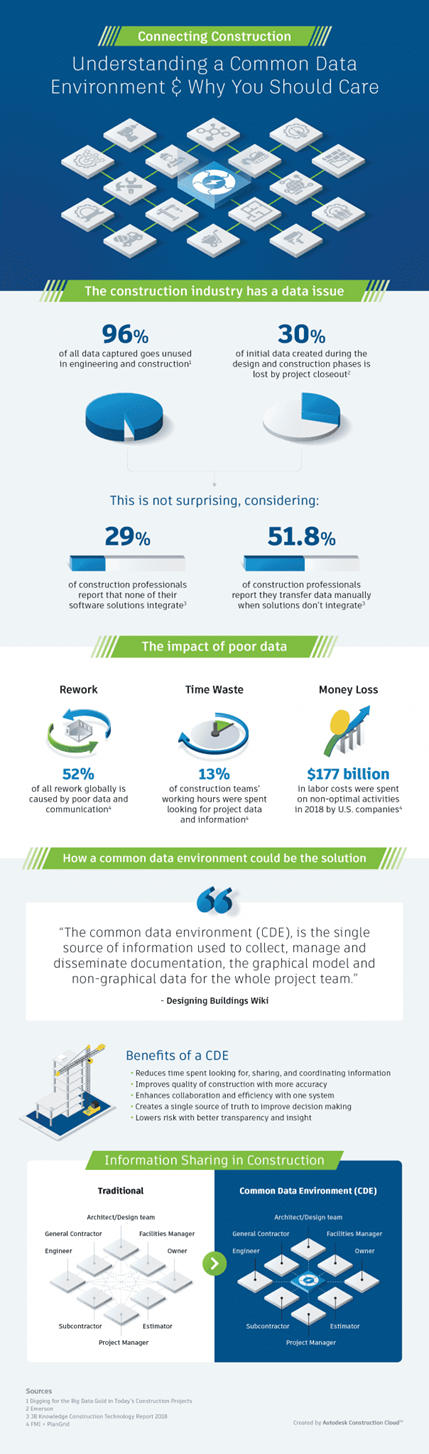

The below infographic explains what a common data environment is and why you should care:


Defining a Common Data Environment

Autodesk Construction Cloud brings together all your construction project data, workflows, and teams into one common data environment. ‘The common data environment (CDE), is the single source of information used to collect, manage and disseminate documentation, the graphical model and non-graphical data for the whole project team, explains the BIM Wiki. ‘Creating this single source of information facilitates collaboration between project team members and helps avoid duplication and mistakes.’

To put it in another way, a common data environment is a digital hub where information comes together as part of a typical building information modelling (BIM) workflow. It was originally created and made well known as part of the UK BIM Level 2 standards. It now goes beyond BIM data and information, and it can incorporate anything from project contracts, schedule, change orders and more.

Basically, if it incorporates information produced during a project, it is accessible to everyone who is granted permission. However, there are certain significant obstacles that make it difficult for companies to develop a CDE for their projects and businesses.

Current Challenges in Today’s Construction Software Ecosystems

The thought of a shared data environment is enticing; however, most construction teams often find their working conditions to be less than optimal. Due to several current obstacles, execution of projects without silos and with seamless collaboration across specialties is harder to achieve. These include:

·         Technologies that don’t talk to each other: To achieve the common good, different pieces of software must work together, however that doesn't happen all too often on construction projects. While each piece of software could have a different purpose or benefit, they don't matter much if the information is not shared and integrated across platforms or channels.

·         No central hub: Without a central hub, a project information becomes unreliable and unactionable when software systems aren’t integrated. Without a single source of truth, information can become muddled, opinions might start to outweigh facts, and a project would end up going over budget and behind schedule.

·         Loss of data: Project information must be transmitted from team to team and from phase to phase. These goes without carrying several risks, including the potential of file incompatibility, loss of detail, and mistakes due to manual processes. For these reasons, it is clear why more than 95% of project data captures is being wasted.

  • Inconsistent workflows and processes: Processes and workflows are frequently decided upon by individual project teams and stakeholders. As a result of the fact that different jobs usually require different workloads and processes, the problem is made worse when systems cannot communicate with one another. Misinformation, confusion, and potential conflicts are the results of all of this.
  • No standardisation: When workflows and procedures are different, the standards by which they are carried out and evaluated also vary. Leading to siloed standardisation, which in turn means that some departments may deem a project to be successful, while others may disagree.

·       Disconnect with the company culture: Large-scale technology and data initiatives that lack direction and buy-in from leadership frequently fail. A foundation for connected construction must be established within a company’s culture to thrive, including shared processes, workflows, standards, and data access.

·        Lack of trust Confusion, duplication, and missing information can be frustrating, resulting to people looking for someone to blame. This eventually leads to blaming the software when there is no one to blame.

 A common data environment, fortunately, goes a long way toward solving many of these challenges.

Why adopt a common data environment?

Built by the leader in design software, Autodesk Construction Cloud brings all project data starting in design into one common data environment. Including model and asset data that can be used for design reviews, identify constructability problems and to jumpstart building operations. There are many other compelling reasons to implement a common data environment on construction projects including:

  • Enhances collaboration: When utilised properly, digital technologies may improve collaboration. This implies that all project data and information need to flow into and be updated in one centralised system. Leading to improved coordination and teamwork, both internally and across teams as a result of this.
  • Creates a single source of truth: Do not underestimate the power of one single source of truth on a project. One reliable place for team members to access real-time plans, changes and data leads to better decision-making and insight across projects.
  • Improves efficiency and quality: The chance of input errors and data loss is reduced by eliminating the need to manually recreate data, common data environments. This results in teams having better access to information throughout the entire company.
  • Lowers risk: CDE can lower risks with better transparency and understanding of the full project landscape. This eventually makes it possible for ongoing improvement and predictability.
  • Strengthens security: Administrators and IT specialists have better control over data and information with a CDE, which creates more security.

 Attributes of a Common Data Environment

It is critical to know how to spot a common data environment. Some construction companies believe they have a common data environment; however it can be lacking important features that are needed to reap the benefits of CDE’s.

An effective common data environment has the following attributes:

  • Easy to Use: An essential component of a common data environment is user experience. To be effective, it needs to be easy to use.
  • Accessible: Cloud-based implies that anyone who needs the information may access it - whether they are in the office or out on a jobsite.
  • Integrated: A CDE must work with current systems and processes. The objective is to break down silos and boost overall collaboration.
  • Standardised and Scalable: Businesses of any scale should be able to standardise workflows and procedures with a CDE.
  • Secure: Data is never compromised in a well-functioning common data environment. A CDE is secure for confidential business documents and information.

 Questions to Ask When Considering Implementing a CDE

It is crucial to not just jump blindly into a new system. When implementing a common data environment, it is important to consider the following:

·         How do you build company buy-in?: To ensure the success of your business and projects, it is important to address this question before establishing a common data environment. Consider areas and projects where you might execute trial programmes to demonstrate their efficacy if getting staff buy-in seems difficult. Remember that selecting a CDE that is simple to use will enhance the technology's uptake.

 ·         Where should you start the rollout?:It is challenging to deploy a new technology or system fully at once, however doing so can cause conflict. Therefore, it's crucial to consider whether this starts at the leadership level or the field level for your business. The greatest strategy is to take things one step at a time.

  • How are you going to standardise?:  A common data environment cannot be introduced without standards. Which workflows and processes will you introduce first and where can standardisation be most useful and powerful? These questions are crucial to build a successful foundation on CDE.
  • Will there be an administrator to manage this?: Start establishing roles within your business before you consider creating a CDE.
  • What does your roadmap look like?: Creating a CDE helps in laying the groundwork for the future. It's important to address things like how you define success and what your long-term goals are.

A common data environment for today and tomorrow

Make sure that no data is overlooked. By enabling your team to optimise and use the information when it matters most, a common data environment puts your business and projects in the best possible position for success. Even better, reliable data may accelerate project delivery by enabling future technologies like AI and machine learning. To ensure that your approach to projects and collaboration stays robust from design through operations, adopt a common data environment with Autodesk Construction Cloud.

Want to learn more about how you can develop a CDE with Autodesk Construction Cloud to benefit your business? Please get in touch with us at Symetri by emailing us at info@symetri.co.uk or call us on 0345 370 1444.
