Wednesday, 29 June 2022

IFC and Infrastructure Design

In the May/June issue of the AEC magazine, there were some excellent articles about IFC. Take a look at it here if you haven't already: https://issuu.com/x3dmedia/docs/aec mayjune22/66



The IFC schema is a vast subject. However, there are certain crucial topics to cover, especially for those who don’t design buildings. When it comes to IFC, Infrastructure (facilities and assets other than buildings) has been the poor cousin to our colleagues working in vertical design. However, we shouldn’t hold buildingSmart responsible because they have developed an open file format that has achieved enormous success. It has made it possible to transfer models accurately and with accompanying information and is already widely used. We should acknowledge that as Infrastructure engineers, we to a while to recognise the advantages of this solution, and that we might have received better service if we had shouted earlier and louder. However, it is the past, and right now we are enjoying the fruits of some excellent work that buildingSmart has done in the background to bring us infrastructure-specific content in the IFC schema.


What has changed?

The definition of IFC Alignment in IFC 4.1, which was a crucial first step in defining the linear referencing system utilised for our transportation and other linear route designs, is built upon in the projected release of IFC 4.3. It offers the framework on which we can “hang” the plans for our pavement, rail and bridge designs upon. We now have definitions for IFC Rail, IFC Road, IFC Bridge and IFC Ports & Waterways in IFC 4.3; tunnels will be coming in the future.



In addition of IfcFacility as the top entity in the hierarchy, with IfcBuilding sharing the same level as IfcRoad and IfcRailway, is another minor but significant modification (alongside other entities). With this framework, a multi-discipline asset model is now more accurate represented, and it will be easier to federation multi-disciplinary models for larger projects where both horizontal and vertical designs co-exist.



What benefits will IFC 4.3 provide?


In the long run, the addition of infrastructure entities in IFC 4.3 will allow us to start investigating open collaboration between various technologies and fields.



Even though we may federate models from several disciplines with the help of technologies like Navisworks, we frequently exchange files in proprietary formats. Even if we may compare designs and their interfaces, in order to make adjustments, we must return to our design programme to make changes, frequently without the advantage of being able to import and use all of the models satisfactorily. Of course, there are ways to connect models; for instance, we can link a Civil 3D model to Revit, but the outcome is frequently less than ideal. I am looking forward to the day when we can link an infrastructure IFC file into Revit and be able to interrogate data and objects regardless of the programme that created them. Perhaps design consultants will be allowed to use whichever tools they have available, as long as they support the most recent version of IFC and collaborate well with other design teams.



Large projects are making commitments to sustainability goals, and the data needed to crunch the numbers will inevitably come from the digital models’ data. Our ability to provide all models, regardless of their source, in the same machine-readable format, will allow the development of streamlined tools to extract and collate this information efficiently.


IFC and Autodesk Civil 3D

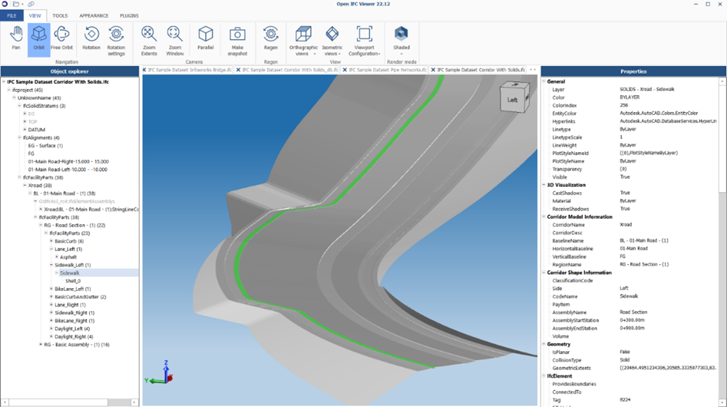

As an experienced Civil 3D user, I am very curious in how we can apply IFC in practice. Civil 3D’s most recent versions support IFC2x3, 4 and 4x1. The IFC 4.3 export tool Autodesk developed is currently undergoing Alpha testing, and the initial results are promising. However, as is typically the case, software that is still in development rarely has a complete set of features, which poses a number of issues. How much can it be customised? Since we don't just build roads, we also need to be able to assign properties and types, as well as employ corridor models for various types of assets, like retaining walls or swales.

Having recent conversations with clients who require COBie data from a Civil 3D model, IFC export would be one way that we could facilitate this, which would let us generate COBie from the IFC file. Naturally, for us to be able to achieve this, we will need to be able to assign suitable data structures.



The way we use Civil 3D differs greatly from how many other design software, like Revit, are used. Large projects designed in Civil 3D require us to split our designs among numerous model files, and objects like corridors, may be linked across those files. I anticipate that one of the difficulties we will have to solve is making sure we don't duplicate information in IFC exports. The ideal export feature would be able to comprehend the entire Civil 3D project, rather than just individual files.



How we handle local and Geospatial coordinate systems is another topic that needs some consideration. In a perfect world, we would be able to specify both in Civil 3D, allowing the resulting IFC file to be linked or imported into other programmes that heavily rely on local grid systems, like the majority of programmes used for building design.



We can't now use IFC 4.3 since software providers are still working on developing and testing new import and export tools, so we will need to be patient. However, I would advise Civil 3D users to look into and play with with the formats that are currently supported. With the available tools, we can export objects from Civil 3D, but this does mean that most of the exported objects are IfcBuildingElementProxy entities and do not have defined types. Although this is not ideal, giving these objects the appropriate Property Data will give us the definition we require. Linking an IFC file created by Civil 3D into Revit can produce some effective effects, such as adding site drainage designs. We have talked with several of our clients about this subject, and we can offer solutions that will make the switch to collaborative working on BIM projects much simpler. For example, Symetri's Naviate tools for Civil 3D can offer an automated solution for collecting information from Civil 3D and AutoCAD and adding it to relevant Property Data Sets given to objects. Numerous properties, including chainages, sizes, lengths, and volumes can be automatically allocated and subsequently updated to account for changes made to the objects or their linked alignments or corridors.



Regardless of where you are in your BIM journey, we are always delighted to talk about workflows and new concepts. I have always found our customer interactions and discussions enlightening over the years, and my colleagues and I look forward to being challenged with fresh issues and ideas. I’m hopeful that some of you will accept the challenge to make use of IFC as an OpenBIM format on your projects, and maybe together we can define some truly fantastic advantages.



Would you like to find out more about Civil 3D? At Symetri, we provide a wide range of Civil 3D training courses to help you improve project delivery, maintain more consistent data and processes, and respond faster to project changes. For more information, please contact us on 0345 370 1444 or info@symetri.co.uk.



Further information:

IFC Overview:

http://ifc43-docs.standards.buildingsmart.org/

IFC 4.3 Schema Definition:

https://standards.buildingsmart.org/IFC/DEV/IFC4_3/RC4-voting/HTML/



Thursday, 23 June 2022

On-Demand | What's New in Revit 2023?


In this on-demand webinar, Symetri’s Senior Consultant Patric Bryntesson walks you through the latest updates in the new Autodesk Revit 2023 release for Architects and Engineers. Professionals can design, construct, and maintain higher-quality structures with the aid of Autodesk Revit software, which was created for Building Information Modelling (BIM). For the entire project team, Autodesk Revit offers a complete solution.

Additionally, Patric presents his top 5 time-saving tips in Autodesk Revit with Naviate, a plug-in solution developed by Symetri to help you work smarter by maximising productivity and reduce risk through cultivation of knowledge, workflow optimisation and business continuity.

Webinar Overview:



  • General updates in Autodesk Revit 2023
  • New features for architects, building engineers & MEP engineers
  • Measure in 3D
  • IFC parameters and export mapping
  • Dynamo and Dynamo player improvements
  • Documentation improvements
  • Performance improvements
  • How to work smarter in Revit - Top 5 time saving tips with Naviate

Interested in learning more about Autodesk Revit? Take full advantage of the features and functionalities Revit has to offer with our wide range of Autodesk Revit training courses, providing you with the fundamentals of using the software. Alternatively, read more about Naviate for Revit here.

Otherwise, please contact us on 0345 370 1444 or info@symetri.co.uk

Tuesday, 21 June 2022

On Demand | Employing BIM Collaborate Pro as a Common Data Environment

For many years, virtual collaboration has been popular in the AEC sector, however this seemed difficult to achieve on a single platform. Autodesk BIM Collaborate Pro, part of the Autodesk Construction Cloud unified platform was developed for this purpose – to bring designers, reviewers, and decision makers together in the same space to create comprehensive master models in real-time. As a result of its seamless integrations with Revit, Civil 3D and Plant 3D, projects created using these tools all benefit from quality model coordination and design collaboration.


Watch this on-demand webinar, where Symetri’s Architecture Solutions Specialist David Amaya-Gonzales looks at cloud-based BIM Collaborate Pro workflows, and how it can be integrated as a common data environment to unify AEC project teams in the cloud.

Webinar Agenda:



  • Co-authoring shared BIM projects in the cloud.
  • Communicating design updates across teams.
  • Performing automated clash detection.
  • Reviewing, editing, and approving models.

If you are interested in learning more about BIM Collaborate Pro, take a look at our product page. Alternative, explore the possibilities with the Autodesk Construction Cloud Unified Platform to help you face the challenges ahead, with simple yet powerful tools to drive connection and reduce risk, costs and increase margins.

Otherwise, please contact us on 0345 370 1444 or info@symetri.co.uk

Monday, 13 June 2022

Design Automation with Dynamo On-Demand

Autodesk Dynamo is a plug-in for Autodesk Revit, offering a visual programming interface that allows users to automate processes for BIM with minimal coding. By using Autodesk Dynamo with Revit, it enables designers to use visual logic to design workflows, minimise human errors and automate repetitive tasks without the need to create a physical prototype.

In this on-demand session, Symetri’s Technical Consultant Lawrence Hooker focuses on design automation and the many advantages and efficiencies you can gain from using Autodesk Dynamo. Lawrence shares the top 10 generic scripts that will help all users of Autodesk Revit, whether you are working in the Architecture, Structural or Building Services industry.

Webinar Overview:

During this webinar, we will cover:

  • Creating sheets from Microsoft Excel
  • Setting up levels and grids
  • Renumbering
  • Renaming
  • Extracting coordinates
  • Revit to Inventor/Fabrication & Manufacture
  • Creating legends from view filters
  • Create parameters
  • Audit and health check Revit projects

Array along a path



Interested in learning more about Autodesk Dynamo? Our Dynamo Fundamentals for Autodesk Revit course provides delegates with a basic understanding of the practical use of Dynamo when used with Autodesk Revit.

Otherwise, please contact us on 0345 370 1444 or info@symetri.co.uk


Friday, 10 June 2022

AutoCAD training courses “Can I put the area of a room in a table?”

 As an Application Specialist with over 25 years of training Autodesk applications, I have recently noticed there has been a growing interest from delegates attending SYMETRI’s AutoCAD training courses to advance their skills with AutoCAD Beyond the Basics and the AutoCAD Advanced courses.

Why are more learners attending more advanced course?

Over the past months, I asked my students why there has been an increased interest in more advanced AutoCAD training courses.

The most common answers, is that their company has reached a plateau, the safe known workflows are not efficient anymore, many CAD drafting staff have retired and the time has come to refresh and reskill to advance the business to the next level.

I discovered the group dynamic to be extremely exciting in the Beyond the Basics and Advanced course, as I notice long time CAD users look at new features and workflows to adapt and apply to their needs in the design office. Our follow-on courses are very much a hands-on skill building experience.

“Can I put the area of a room in a table”

During these more advanced training courses, I tend to describe features that will streamline a workflow. For example, when I trained a group of delegates from the world of space planning, where they asked: “Can I put the area of a room in a table?” The answer being “yes”, allows us to discover the workflow to achieve this goal.

 First, we looked at the boundary command.



We then picked a point inside a room using the Object type as Polyline.




This created a closed polyline bounding one of the rooms. There is an entry which shows the Area and Length in the properties under Geometry. Using that information, we can populate given cells in a table.

Over in Paper Space we created a simple table to display Room Name, Room Perimeter and Room Area. In that table, we double clicked on the data cell under Room Perimeter and selected field in the Data menu.



Select object on the left field names in the field dialogue box, and then select the polyline. You can select the polyline model line even when you are in Paper Space.

We need Length to describe our room perimeter and Decimal for format.

In Additional Format we used a conversion factor of 0.001 to convert our millimetres unit size to meters for our table entry.

This gave us a value that represented Metres in Length for the perimeter of the room or boundary that we created. This value is dynamic so if you change the boundary, it will update the table field value.


Use the same procedure to extract the area value from the polyline and put in the table.

AutoCAD Training courses

We offer a wide range of AutoCAD Training courses, please visit our website for more information: https://www.symetri.co.uk/training/autocad-training-courses

AutoCAD Essentials - This course covers the essential core topics for working with the AutoCAD software, starting with a few basic tools expanding to more advanced ones. Find out more: https://www.symetri.co.uk/training/training-courses/autocad-essentials

AutoCAD Beyond the Basics - This 2-day course will help you explore more advanced tools and techniques to help you work smarter. Explore the full course content here: https://www.symetri.co.uk/training/training-courses/autocad-beyond-the-basics

AutoCAD Advanced - Customising and managing AutoCAD to suit your design application is a great way to increase your productivity. This course teaches simple but powerful customisation techniques and advanced AutoCAD tools. Explore the full agenda here: https://www.symetri.co.uk/training/training-courses/autocad-advanced
